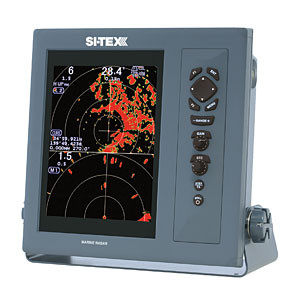

Si-Tex T2060A-6 10.4" Display 6kW Open Array Radar with 6.5' Antenna

Model: T2060A-6

Dual-Speed antenna with 48-rpm capability for high speed/river operations
Split-screen display of long- and short-range targets simultaneously
True-Trail Function identifies moving targets
Features include Interference Rejection, Target Expansion, Parallel Index, True/Relative Bearing
Standard AIS Interface module capable of tracking 200 targets*****
Optional 50-target Automatic Tracking Aid (ATA).

Specifications

Scanner	6.5' Open Array
Peak Power Output	6kW
Output Frequency	9410 +/- 30MHz
Beam Width	1.2° Horzontal, 22° Vertical
Rotation	24 or 48 RPM
Pulse width	.08, 0.15, 0.3, 0.5, 1 usec
IF Frequency	60MHz
Range Accuracy	Better than 8m or 1% of range scale selected, whichever is greaer
Minimum Detecting Distance	25m
Display Unit
Size/Type	10.4" TFT Color LCD
Resolution	480 x 640
Display modes	Heads up, North up, Course Up, WPT up**
Dimensions	12 19/32" x12 19/32" x 5 39/64"
Power	10.8 - 31.2vDC
Power Consumption	110 watts or less
*Requires heading, speed, and/or position signal input from external equipment including GPS Compass depending on application of user.
**Requires waypoint data input.

What's in the Box:

MRD-104 Display
RB717A - Pedestal 6kW
RW701A-06 - 6.5' Antenna
242J159098A ?15M Cable
DC Power Cable
Quick Reference guide
Operation manual
