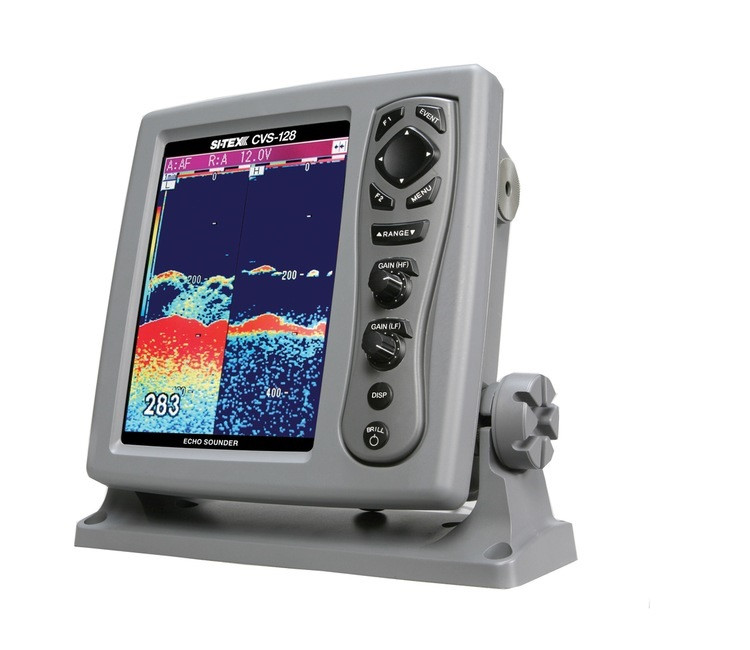

Sitex CVS128 8.4in Color LCD Sounder With Out Transducer

Sitex CVS128 8.4in Color LCD Sounder With Out Transducer

Si-tex
SKU:
SITCVS128WO
|
UPC:
010407320748
$1,450.62
$1,668.21
(You save $217.59 )
(No reviews yet)
Condition:
New
Current Stock:
Adding to cart… The item has been added
Description
  • Dual-Frequency (50/200kHz) operation with digital signal processor (DSP) for a clearer image that enhances fish targets in shallow and deep depths, plus auto function for the most reliable setting and best performance

  • Boasts 1000 or 600 watts with 8 ranges from 10-3600'.

  • Exclusive Sona-Tone identifies what's under your boat with different sounds for fish and schools of fish.

  • Stores up to 10 screen images in built-in memory for recall later. RGB output for connecting optional external VGA monitor.

  • High-speed pulse rate transmission of 5000 times per minute for enchanced shallow water detection.

  • Other features: anti-reflective display, easy operation, auto fishing/cruising modes, audio/visual alarms, Fishing Hot Spot function leads you back to your favorite fishing hot spots with GPS sensor input, IPX5 waterproof rating, over-head and built-in flushing mounting. 10.8~31.2 VDC
    SI-TEX CVS-128 Digital Echo Sounder- Specifications

    Display

    		 8.4" TFT Color LCD (640 x 480 pixels)

    Display Colors

    		 8, 16, 64 or monochrome

    Power Requirments

    		 10.8 ~31.2V DC.

    Power Consumption

    		 25w or less at 12V DC

    Operating Frequency

    		 Dual Frequency 50/200 kHz

    Output Power

    		 600W/1000W

    Background Colors

    		 Blue, dark blue, black, white, nighttime and 5 other colors

    Display Modes

    		 High frequency, Low frequency, Dual frequency, Zoom image, Nav mode, A-Scope (can be added all above modes), left and right divided

    Zoom Modes

    		 Bottom lock, Bottom discrimination, Bottom zoom, Zoom, Sea Bottom, Partial zoom

    Depth Ranges*

    		 8 ranges from 10 to 3600'

    Zoom Ranges

    		 10 to 650' (23 steps)

    Audible Alarm

    		 Fish, bottom, depth, temperature**, speed ***, arrival****, XTE****

    Image Speed

    		 9 levels plus stop
    Image Shift Auto or Manual (0 to 1000')
    Auto Functions Depth range, Shift and Gain
    Languages English, Spanish, French, Greek, Italian, Japanese, Korean, Chinese, Thai
    Distance Unit ft, m, fm, 1, FM
    Input Format NMEA0183 (GGA, GLL, ZDA, VTG, RMC, MTW, VHW, MWV, HDT)
    Output Format NMEA0183 (DBT, DPT, GGA, GLL, MTW, RMC, TLL, VHW, VTG, ZDA, HDT, MWV)
    Other Functions Interference rejection, Color rejection, Depth marker (VRM), Event Memory, Panel illumination, Draft adjustment, Temperature correct, Boat speed correct, White line, Sona-Tone?, Power reduction, Built-in simulator, Noise rejection, Simple Plotter
    Waterproof Rating IPX 5
    Operating Temperature 5 to 131 F (-15 to +55 C)
    Case Size/Weight 9.5"W x 9.5"H x 4.5"D, 7.2 lbs
