Simrad NSS12 evo3s Radar Bundle C-Map Enhanced and Halo 20+

Simrad NSS12 evo3s Radar Bundle C-Map Enhanced and Halo 20+

Simrad
SKU:
SIM00015555002
|
UPC:
9420064130221
$5,624.13
$6,467.75
(You save $843.62 )
(No reviews yet)
Condition:
New
Current Stock:
Adding to cart… The item has been added
Description

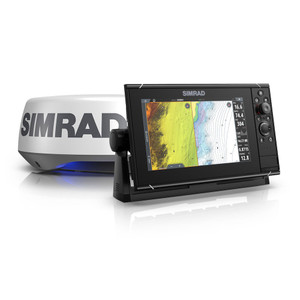

Simrad NSS12 evo3 + Halo20+ Radar bundle

Model: 000-15555-002
  • High Resolution, High Bright, SolarMax IPS Displays
  • Easy to use touchscreen UI as well as full keypad for simple and precise control in any sea conditions
  • Built-in advanced echosounder capable of 1kW Dual channel CHIRP, Forwardscan, Sidescan, Downscan and StructureScan 3D images
  • Take another step forward with Simrad’s premium network modules for the ultimate offshore performance
  • Halo Dome and Open Array Radars: S5100 Sportfishing Echosounder, Direct audio, autopilot and engine connection and control
  • Low profile glass dash styling
  • Built in Wi-Fi connectivity
  • Next Generation Processor
  • SolarMAX IPS Display Technology
  • Multi-touch screen and keypad hybrid control
  • Built-in Advanced Echosounder

NSS evo3S is a mid-life update to the NSS evo3. The key difference is a next generation processor. This greatly improves the speed and smoothness of the display. The NSS evo3 is already a feature packed product and the new processor in the evo3S means that each one of those features is now improved

Specifications
Physical
Dimensions352 x 225 x 98 mm (13.84 x 8.87 x 3.82")with bracket: 377 x 241 x 120 (14.85 x 9.47 x 4.71)
Weight3.10kg/6.83lb
Environmental
Operating temperature range-15°C to +55°C (5° F to 131° F)
Environment Shock Vibration100,000 cycles of 20G
Storage temperature range-20°C to +60°C (4°F to 140°F)
Water resitanceIPX6 and 7
Power
Supply voltage10 - 31.2 V DC
Fuse rating5A
Power consumption (Max)28W
Display
Display backlight colorWhite
Display resolution800 x 1280
Display screen brightness1200 nits
Display size and typeHigh Visibility SolarMax HD® IPS 7" optically bonded TFT
Display viewing angles80° top/bottom, 80° left/right
Connectivity
Ethernet2 x 5 pin yellow connector x 1 Mbit
BluetoothInternal
NMEA2000 connectivity1 x NMEA 2000 Micro-C port, 1 LEN
NMEA 0183 connectivity1 x Transmit, 1 x Receive NMEA 0183, Baud Rates 4800, 9600, 19200, 38400. TX and RX use same baud rate. Optional data cable required (P/N 000-00129-001)
Video connectivity2 x composite (RCA connectors)video inputs. Optional video/ data cable required (P/N 000-00129-001). Note Navico removed HDMI output April 2022
WiFi connectivityInternal
Sonar
Sonar frequencies40-250kHz 455-800kHz
Sonar max depth3000’+ (tested with B175L)
Sonar output power1kW RMS
ComplianceCompliance
GPS
GPSInternal
GPS update rate10 Hz
GPS channels34
GPS correctionWASS, EGNOS, MSAS, GLONASS
GPS position accuracyHorizontal Accuracy 3 m (9.8 ft)
GPS time to first fixCold start 50 sec, Satellite Reacquisition 5 sec

What's in the Box:
  • HALO20+,SIMRAD,20",RADAR
  • Scanner cable, 10 m (33 ft)
  • Cable, RJ45 TO 5 PIN,1.5 m (4.9 ft)
  • NSS12 EVO3S COMBO MFD,US C-MAP
  • NSS12 evo3 Sun cover
  • NSS12 EVO3 & ZEUS3 - 12 DASH MOUNT KIT
  • NSS12 EVO3/3S & ZEUS / S-12 MOUNTING BRACKET
  • NSS12 EVO3 & ZEUS3 — 12 EDGE BEZELS
  • Power
