Maretron Blue Mid Cable 8M Male To Female Connector
Maretron
$75.52
$86.85
(You save
$11.33
)
(No reviews yet)
Write a Review
Maretron

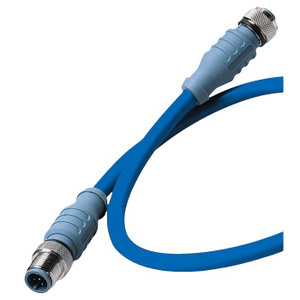

Maretron Blue Mid Cable 8M Male To Female Connector
Maretron Blue Mid 8 Meter Cable
Model: DM-DB1-DF-08.0UPC: 873804001968
- Rugged, IP68 rated connectors for continued connection integrity in marine environments
- Various cable lengths to match installation requirements
- Optimized for voltage drop sensitive networks (long runs) because power pair wires have half the resistance of Micro cable
Double-ended cordsets are used for trunk or drop lines and make for a secure connection and simple timesaving installation. The connectors are keyed for error-free connection and are waterproof for continued operation even while submerged in the bilge.
Specifications| Mechanical | |
| Contact Carrier Mat/Color | Thermoplastic PUR/Blue |
| Molded Body Mat/Color | Thermoplastic PUR/Blue |
| Contact Mat/Plating | Brass/Gold |
| Coupling Nut Mat/Plating | Brass/Nickel |
| Connector Outside Diameter | 0.59 in |
| Electrical | |
| Current rating | 4.0 Amps |
| Voltage rating1 | 250v |
| Cable | |
| Outer Jacket Mat/Color | PVC/Blue |
| Conductor Insulation Material | PE (data pair), PVC (power pair) |
| Number of Conductors | 2x16 (1.29mm) AWG, 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire |
| Shielding (3 Levels) | Foil (Overall), Foil (Power Pair), Foil (Data Pair) |
| Enviromental | |
| Protection class | IEC IP68, NEMA 1,3,4,6P |
| Temperature rating | -40°C to 80°C to (-40°F to 176°F) |
| Approvals | |
| (Cable) UL | PLTC 75°C Sunlight Resistant E90625, AWM 80°C 300V |
| (Cable) CSA | CMX-OUTDOOR-CMG LL54185 75°C, AWM I/II A/B 80C 300V FT4 |
| NMEA | NMEA 2000® Approved |
| IEC | IEC 61162-3 |
