FLIR MD625 Bundle With JCU 640X480 Resolution 30Hz

FLIR MD625 Bundle With JCU 640X480 Resolution 30Hz

FLIR
SKU:
FLI43200101300
|
UPC:
815121016546
$8,068.55
$9,278.83
(You save $1,210.28 )
(No reviews yet)
Condition:
New
Current Stock:
Adding to cart… The item has been added
Description

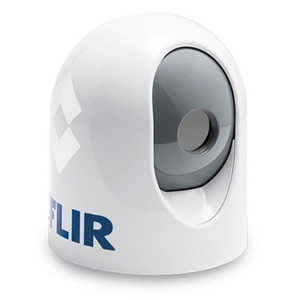

FLIR MD625 Compact Fixed View Marine Thermal Camera

with JCU

Model: 43200101300
  • DISPLAYS HEAT, NOT LIGHT: The MD625's 640 x 480 resolution thermal sensor reveals vessels and obstacles in total darkness and even midday glare.
  • SIMPLE TO MOUNT: A compact, all weather, water proof enclosure provides easy mounting.
  • ETHERNET-ENABLED: The MD625 is Ethernet-enabled for simple integration into your vessel's existing electronics.

The MD-Series is an affordable, compact fixed-mounted thermal night vision system that helps with steering around obstacles, collision avoidance, and finding people in the water at night. Simple to mount and easy to integrate into your existing electronics, MD-Series outputs standard analog video that can be easily displayed on almost any monitor at the helm or other locations on the vessel.

Specifications
Power Consumption4.8 W nominal; 12.5 W max
Automatic Window DefrostStandard at Power-Up
EMIEMI
Lightning ProtectionStandard
Operating Temperature Range-25°C to +55°C
Salt MistIEC60945
Shock15 g vertical, 9 g horizontal
Storage Temperature Range-40°C to +85°C
VibrationIEC 60945; MIL-STD-810E
Water IngressIPx6
Wind100 knot (115.2 mph)
Dimensions6" dia. 7" ht.

What's in the Box:
  • Single payload camera with 320 x 240 pixel microbolometer
  • 25 foot analog video cable (308-0164-25)
  • 25 foot shielded Ethernet cable (308-0163-25)
  • Weather proof Ethernet coupler (4115028)
  • PoE Injector (4113746)
  • Mounting Hardware
  • Operator's Manual, Installation Guide
  • Joystick Control Unit P/N 500-0395-00
