Blue Sea M2 AC Multimeter

Blue Sea M2 AC Multimeter

Blue Sea Systems
SKU:
BSS1838
|
UPC:
632085018382
$319.04
$366.90
(You save $47.86 )
(No reviews yet)
Condition:
New
Current Stock:
Description

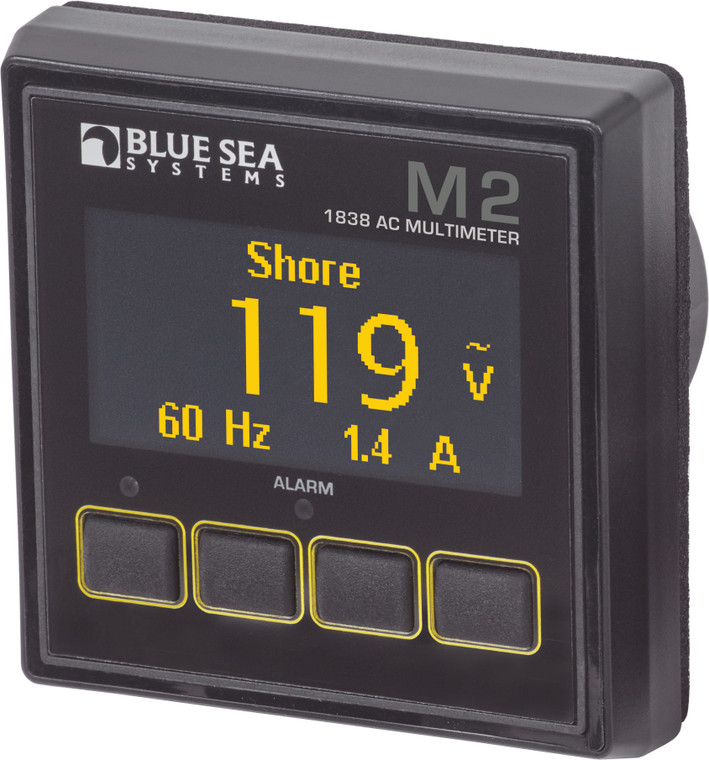

Blue Sea M2 AC Multimeter

Model: 1838-BSS
  • Auto-dimming, bright OLED display is easy to read
  • Easy to adjust
  • 80dB alarm on all models
  • Isolated MOSFET relay

Monitors AC Amps, Volts, Hzs on large, bright display. Supports programmable current transformer ratios. Accurately measure and monitor AC amperage, voltage and Hz. (measures 2 voltages and 2 circuits)

Specifications
MeterCurrent, Frequency, Power, Voltage
Function 50 to 250 to 300A
Resolution1V AC
Input Voltage7-70V DC
AlarmsHigh/Low Current
High/Low Frequency
High/Low Voltage
Current Accuracy± 2.0%
Display Size55mm x 28mm
Frequency Range40-90Hz
Frequency Resolution1Hz
Maximum Power Consumption1.00 Watt
Minimum Power Consumption0.3 Watt
Power Range0-45kW
Power Resolution10W (0-9990W)
0.1kW (10-45kW)
Voltage Accuracy± 2.0%
Weight4.00lb (1.81 kg)

What's in the Box:
  • M2 Head unit
  • Surface Mount Bezel and Seal
  • Surface Mount Gasket
  • Surface Mount Cover
  • Flat Mount Bezel
  • Flat Mount Clamp
  • Mounting Ring
  • Mounting Nut
  • AC Current Transformer 8256 (1X)
  • Connector
  • Screwdriver
