Blue Sea 285-Series 150 Amp Circuit Breaker Panel Mount

Blue Sea 285-Series 150 Amp Circuit Breaker Panel Mount

Blue Sea Systems
SKU:
BSS7089
|
UPC:
632085070892
$62.57
$71.95
(You save $9.38 )
(No reviews yet)
Condition:
New
Current Stock:
Adding to cart… The item has been added
Description

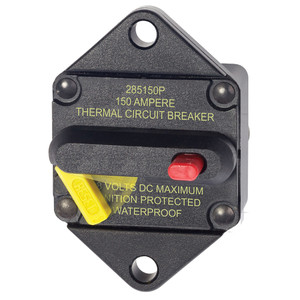

Blue Sea Systems 285-Series Circuit Breaker - Panel Mount 150A

Model: 7089-BSS
  • Drop in replacement for 185-Series Circuit Breakers
  • Visible reset lever shows open condition
  • Ignition protected - Safe for installation aboard gasoline powered boats
  • Meets SAE J1171 external ignition protection requirements
  • Weather Resistant
  • Combines switching and circuit breaker function into one unit*
  • "Trip Free" - cannot be held closed after trip

* Do not use as a switch where high inrush currents are expected

Specifications
Amperage150A
Maximum Voltage48V DC
MountingSurface Mount
Circuit Breaker TypeThermally responsive Bi-metal blade
Terminal Stud Torque60 in-lb (6.78 Nm)
Interrupt Capacity3000A @ 48V
Minimum Operating Temperature-40° C
Maximum Operating Temperature85° C
Circuit Breaker ClassType III - switchable/manual reset - trip free
Terminal StudM6 (accepts 1/4" Ring Terminal)
