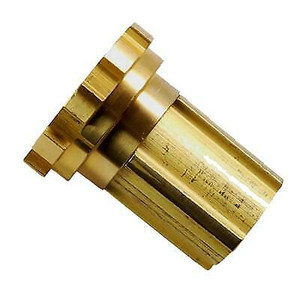

Michigan Wheel Drive Adaptor 991227

The Drive Adapter makes it easy to install the XHS II Hub Kit into the splined aft area of some outboard motors. The Drive Adapter for 30-70 HP XHS II Hub Kits 113, 114, 116, and 117, when combined with the splined aft adapter, converts a motor with a 13 spline input shaft to take an 11/16?? diameter output shaft.

WARNING: CA PROPOSITION 65

Key features:

• Splined Aft Adapter for Select Nissan and Toyota Motors

Compatible with the following XHS II Hub Kits:

113

Honda Outboard Motors

3-1/4?? Gearcase 35-60 HP

Nissan and Tohatsu Outboard Motors

BFT60 2014 and later

114

Outboard Motors

40-75 HP Gearcase 3-1/4?? 13 Spline

Mercury/Mariner Outboard Motors

40-70 HP Gearcase 3-1/4?? 13 Spline

Choose motors with less than 40 horsepower.

Bigfoot 25 HP 4-Stroke

1994-2002 30 HP 2-Stroke

1999-2005 30 HP 4-Stroke

1994 and newer 30 HP Sea Pro/Marathon

1984-1989 35 HP

116

Nissan and Tohatsu Outboard Motors

13 Spline Motors (35-60 HP)

35B 1984 and earlier

MFS40 2015 and later

TLDI; 40C; M40D; MD40) 1984 and later

50 HP (excluding 50C) 1992 and after

MFS50 2015 and later

117

Yamaha Outboard Motors

3-1/2?? Gearcase 13 Spline 40-60 HP

Choose motors with less than 40 horsepower.

T25 HP 2010 and after

2001-2005 F30 4-Stroke; 2015-Newer

Specifications:

• SKU: 991227

• UPC: 014984013079

• Weight: 1.00 LBS

• This product replaces: 14984013079

• Brand: Michigan Wheel

• Manufacturer: Michigan Wheel

• Manufacturer’s Part Number: 991227

This product replaces:

14984013079
