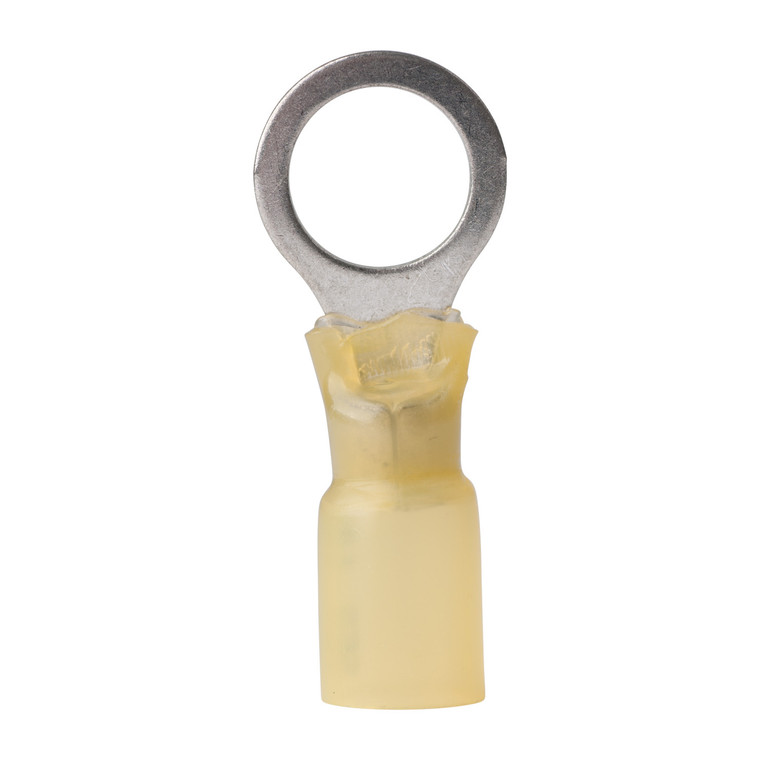

Marinco/Ancor Marine 12-10 Heat Shrink Ring Term. 312625

The 12-10 HEAT SHRINK RING TERM.1-312625 by ANCOR heat shrink connectors offer heat-activated adhesive built into the sleeve of the heat shrink tubing. The heat-activated adhesive coating seals out salt water, oil, acids, and sunlight while also providing strain relief. The cross-linked polyolefin tube of these terminals is far more durable than PVC tubing and does not burn. The 12-10 HEAT SHRINK RING TERM.1-312625 creates a secure seal when shrank and delivers the best vibration and strain reduction.

Key Features

• Marine-grade nylon insulator because of its resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage.

• UL-listed and CSA-approved

• Maximum current flow with pure copper

• The highest shrink ratio shrinks to 1/3 of its former size.

• Brazed seam for ultimate strength.

• Tinned resist corrosion

• Shrinks to form a water-tight seal, ultimate vibration resistance and strain relief

Specifications

• BRAND: ANCOR

• SKU: 1-312625

• UPC:091887316223

• Weight:0.21 LBS

• Operating temperature: 40° C to 110° C

• Shrinks:257° F/125° C

• Gauge Size: 12-10

• Screw Size: 3/8"

• Quantity: 25

Ancor heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing. When heated, these connectors form a water tight seal and the ultimate vibration and strain relief.
